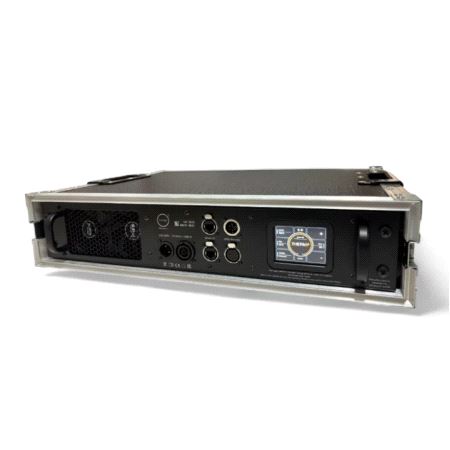

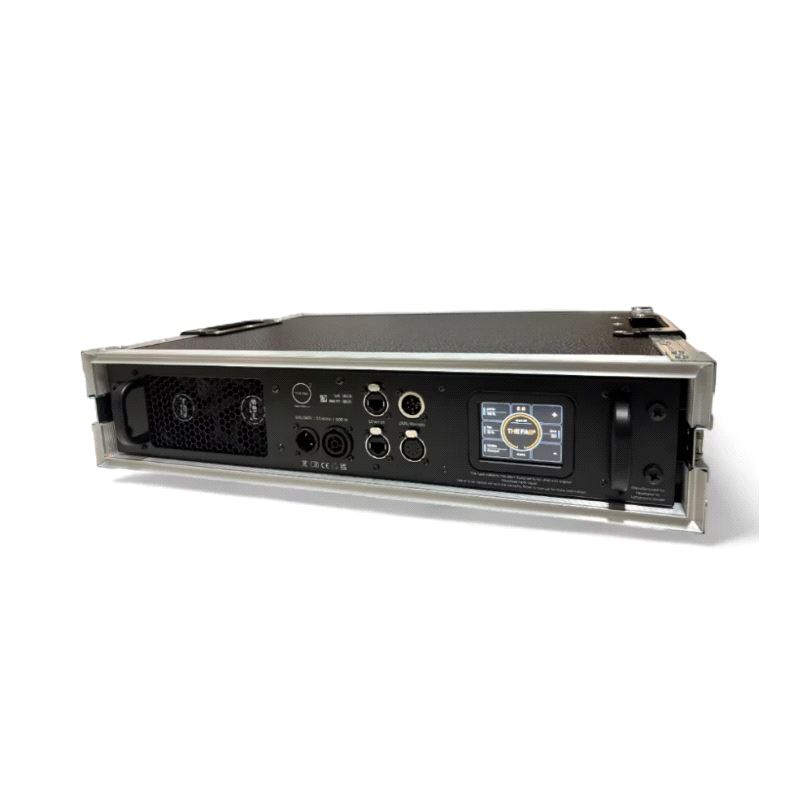

Hazer, HazeBase The FAB² 19 inch DMX 500w 230v/50Hz in flightcase

Art nr
:
HAZ-B0120

28 625,00 inkl.mva

Størrelse
Farge
stk
Antall
?#spª?G¡?§?ÔÜÛ`Ï̽Lgü=áõÒÆjH%ò]?R¤2?Ùì}¨?¢­_Ú?K£1hÈ ?zàÿ
Technical data

  • Operating principle:     Hazer without compressor
  • Connection data:         100-240v~, 50-60 Hz, 500w (PowerCon True1)
  • Heating time:              5 seconds
  • Haze density:              1-100% adjustable
  • Fluid tank:                  1000 ml
  • Pump capacity:           1% pump capacity 5.6ml / hr 100% pump capacity 223ml / hr
  • Operation:                  2.8" TFT display w/ touch panel, auto display rotation (0°/180°)
  • Communication:          10/100 Mbit Ethernet w/ integrated 2-port switch, 5 pin XLR in/out
  • Supported protocols:   Artnet, sACN, DMX512, RDM
  • DMX control:               3 channels (pump, fan speed, angle)
  • Integrated fans:          2 axial fans with one per 100m³/h, 0-100 adjustable
  • Air leading metal:        2 motorized controllable air leading metals, +/- 45° swivel
  • Integrated sensors:     Fan speed, accelerometer, temperature sensor
  • Integrated battery:      4x NiMH batteries for configuration without power cord
  • Supported fluids:         Base*V
  • Dimensions (LxWxH):  19" Flightcase with 2U
  • Weight (kg):               16.6 kg
Technical data

  • Operating principle:     Hazer without compressor
  • Connection data:         100-240v~, 50-60 Hz, 500w (PowerCon True1)
  • Heating time:              5 seconds
  • Haze density:              1-100% adjustable
  • Fluid tank:                  1000 ml
  • Pump capacity:           1% pump capacity 5.6ml / hr 100% pump capacity 223ml / hr
  • Operation:                  2.8" TFT display w/ touch panel, auto display rotation (0°/180°)
  • Communication:          10/100 Mbit Ethernet w/ integrated 2-port switch, 5 pin XLR in/out
  • Supported protocols:   Artnet, sACN, DMX512, RDM
  • DMX control:               3 channels (pump, fan speed, angle)
  • Integrated fans:          2 axial fans with one per 100m³/h, 0-100 adjustable
  • Air leading metal:        2 motorized controllable air leading metals, +/- 45° swivel
  • Integrated sensors:     Fan speed, accelerometer, temperature sensor
  • Integrated battery:      4x NiMH batteries for configuration without power cord
  • Supported fluids:         Base*V
  • Dimensions (LxWxH):  19" Flightcase with 2U
  • Weight (kg):               16.6 kg
